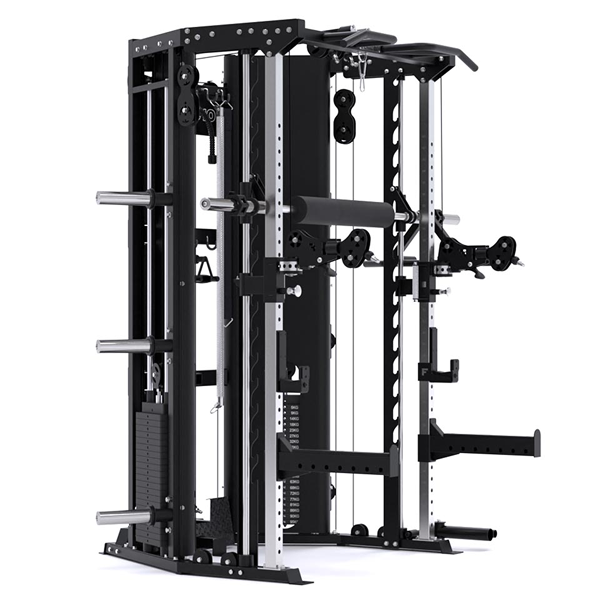

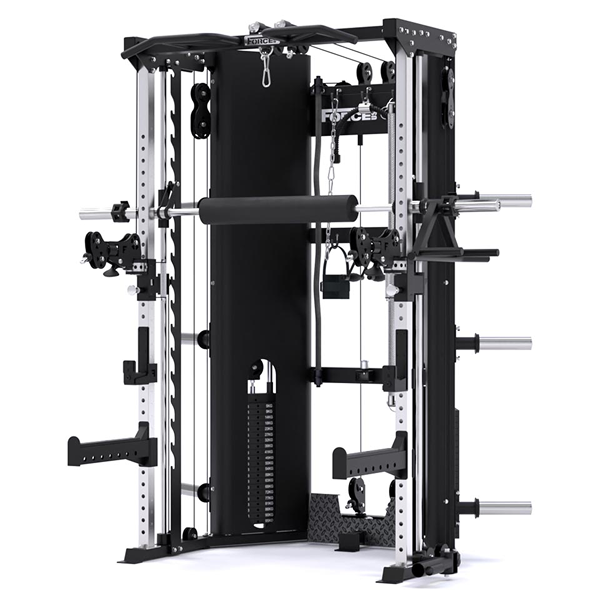

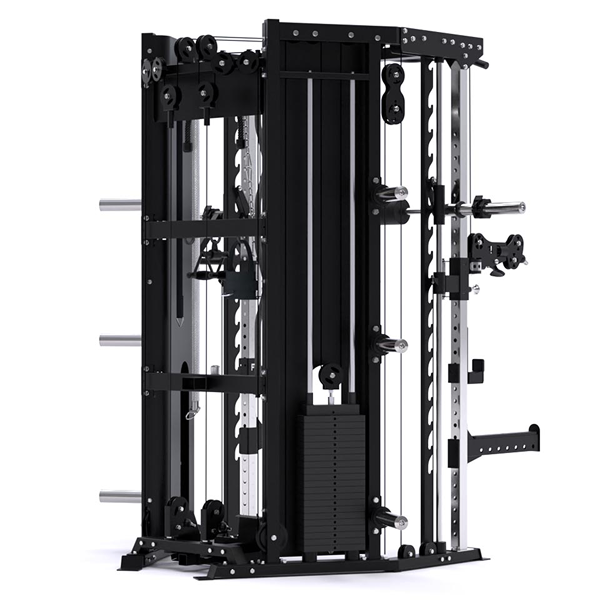

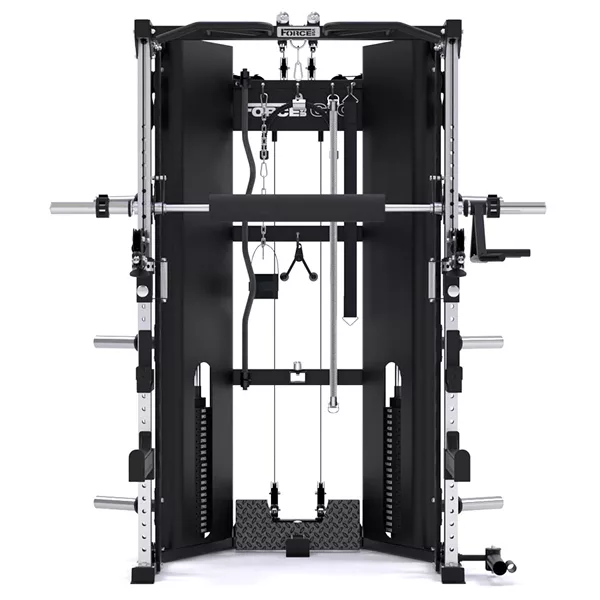

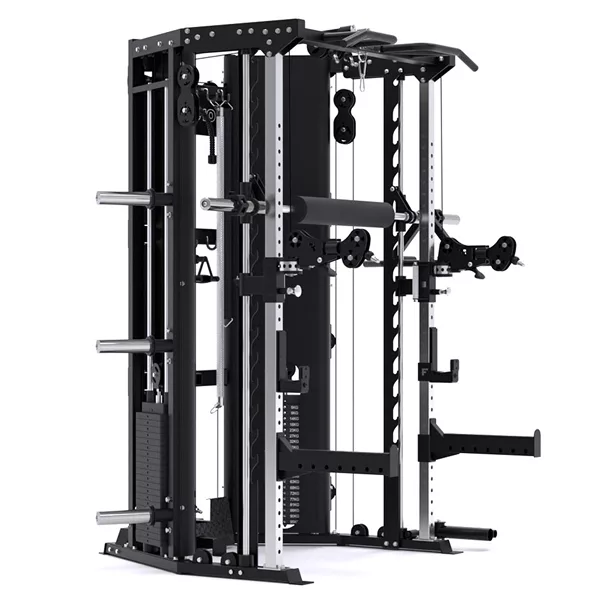

Sleek, Strong Compact Design
Packed into a small footprint.

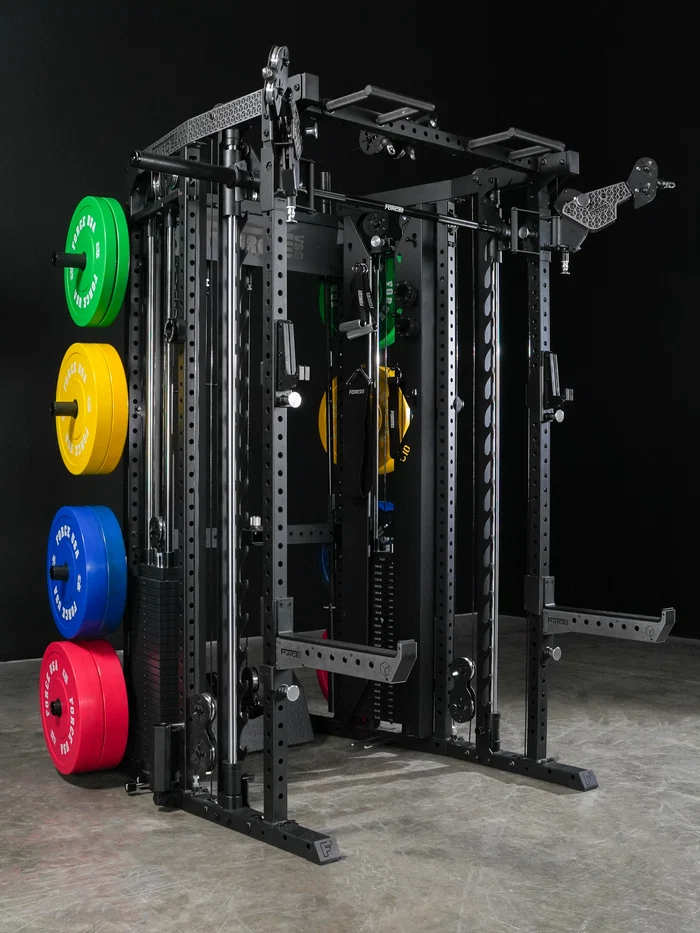

Strong, stable, and engineered to perform. Lighter, sleeker, and with a smaller footprint. The C10 is built on square 11-gauge steel uprights. With an open ecosystem compatible with third-party attachments.
- Uprights are equipped with laser-cut ⅝” holes and 2″ spacing on all four sides, allowing the user to fully customize this six-post system.
- Professional standard 44″ interior working space, with a 48″ exterior width. Optimal width for bench, squat, and deadlift.
- The base frame sits completely flush with the floor (unlike pedestal-foot designs), delivering maximum stability. The base self-adjusts to slightly uneven floors, eliminating the wobble that pedestal feet can promote.

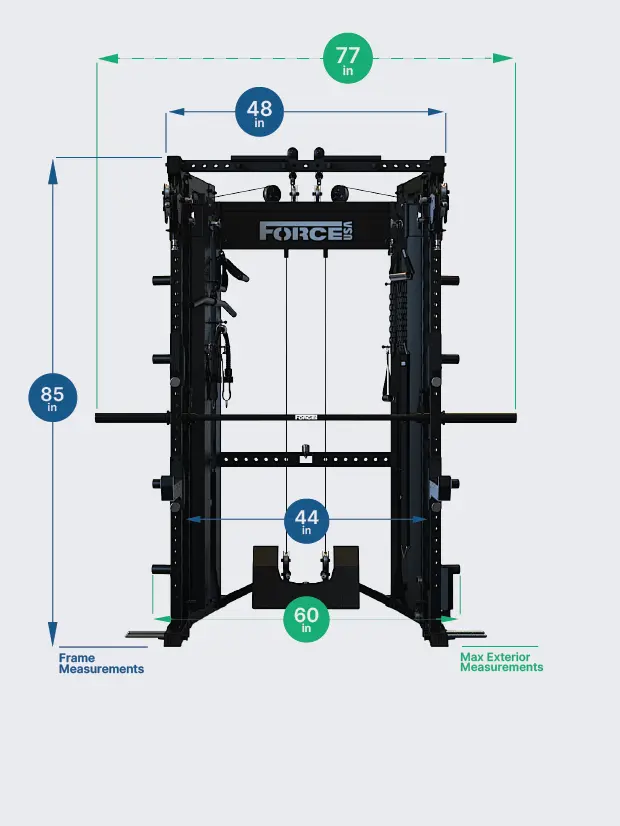

Frame Dimensions
| Exterior (W × D × H) | 48″ W (77″ W with Smith Machine) × 56″ D × 87.5″ H / 122 cm W (195.5 cm W with Smith Machine) × 142 cm D × 222 cm H |
| Interior (W × D × H) | 44″ W × 48″ D × 83″ H / 112 cm W × 122 cm D × 211 cm H |
| Uprights | Square 11-gauge steel with laser-cut 5/8″ hole pattern and 2″ spacing on all sides |
| Structure | Six-post structure with flush, self-adjusting base frame |
Pulley System
| Location | Ratio |
|---|---|
| Bottom Center Cables | 1:1 (or connected to double resistance) |
| Top Center Cables | 2:1 |
| Freestyle Pulley Arms | 2:1, with Lock Mode and Flow Mode (180 degrees of freedom) |
Space Requirements
| Minimum ceiling height for full pull-up | 8’4″ / 100″ |
| Maximum user height | 7’1″ / 85″ |
- Cables
- 6.2 mm nylon-coated mil-spec aircraft quality cable, tested to 2,000 lb (907 kg)
